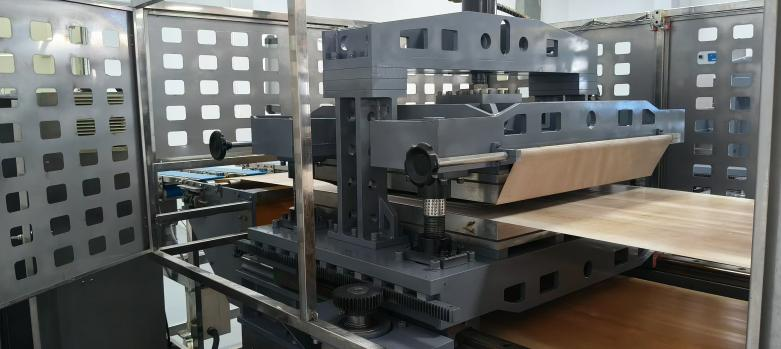

Heavy Duty Tortilla Hot Pressing Machine

FQTT Bakery Machinery Tortilla Hot Press Forming Machine.

The FQTT Bakery Machinery Tortilla Hot Press Forming Machine is a specialized piece of equipment designed for the industrial-scale production of tortillas. Utilizing high-temperature and high-pressure technology, this machine rapidly presses pre-portioned dough into uniform, thin tortillas, ensuring high production efficiency and product consistency. FQTT Bakery Machinery can customize the equipment according to your specific needs or provide OEM services for private labeling.

Key Features:

1. High-Efficiency Production – Fully automated operation enables continuous production, making it ideal for factory production lines.

2. Uniform Forming – The high-temperature pressing technology ensures consistent tortilla thickness, precise diameter, and better texture.

3. Labor Savings – Reduces manual labor, improves production efficiency, and lowers operational costs.

4. Intelligent Temperature Control – Precisely controlled pressing temperature ensures stable product quality and optimal taste.

5. Non-Stick Surface – The pressing plates are made of food-grade non-stick materials to prevent dough from sticking and enhance production efficiency.

Production Process:

1. Dough Preparation – Dough is placed into the dough divider and rounder, where it is divided and shaped into uniform dough balls before automatically entering the fermentation cradle for 10-15 minutes of rolling fermentation.

2. Automatic Transfer – Once fermentation is complete, the dough balls are transported via conveyor belt into the hot press machine.

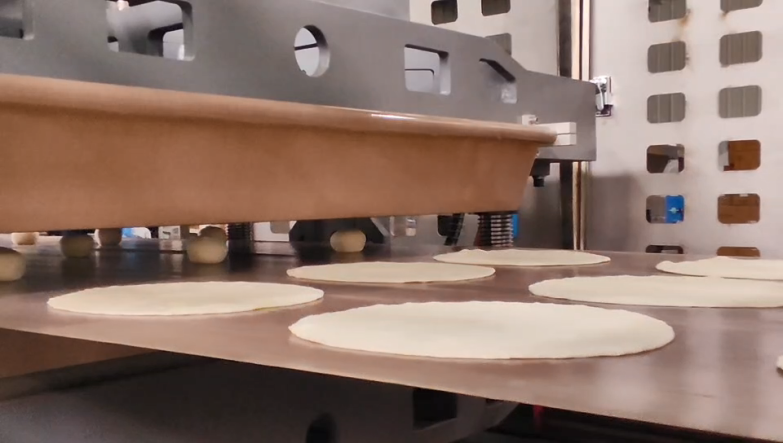

3. High-Temperature Pressing – The upper and lower heated molds press the dough, instantly forming tortillas.

4. Cooling & Conveying – The pressed tortillas automatically enter the tunnel oven for baking to perfection.

The FQTT Bakery Machinery Tortilla Hot Press Forming Machine, along with the complete tortilla production line, is widely used in the food processing industry, food factories, and wholesale food manufacturers. We provide high-quality and cost-effective equipment from China, ensuring safe, continuous production with the highest reliability and protection for your business.

Specification：

Machine dimension: 4084mm*2170mm*2173mm

Frame material: SUS304

Conveyor: 1 set

Conveyor Material: Teflon

Motor: AC, 400W servo motor*1

Servo motor*1

Motion module FX5-40SSC-S, CPU host FX5U-64MT/ES

Forming power device

Hydrocylinder: HSG125*100+FA+50*1

Hydraulic system*1 set

11.5KW motor

Plunger-type hydraulic oil pump PVS-0B-16N3

Equipped with relief valve to reduce the vibration caused by high pressure

linear slide railsHGH65HA2R1230ZAP1*2 sets

Gear-rack drive

Servo motor 4.5KW*1

High precision planetary reduction motor*1

Heating plate 23KW*2 sets

Mesh belt conveyor

Motor: 180W reduction motor*1

SUS 304 mesh belt

VFD: 0.75KW*1

Electric box*1 group
