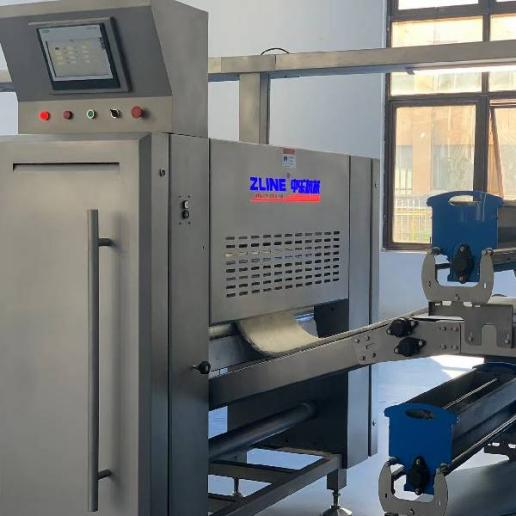

Industrial pastry sheet laminating line

The line is equipped with video monitoring equipment, which can more conveniently observe the operation of the equipment at each key stage.
The line is equipped with a remote control system, which can observe the abnormal data of the equipment in the background and optimize it remotely.
Thickness of the dough can be adjusted as per your request on the touch screen or button on the pressing machine.
One-click switching between multiple products can be achieved by saving product recipes.
Full set of 304 stainless steel materials and world famous electrical components makes this line be strong enough even after long-term usage.

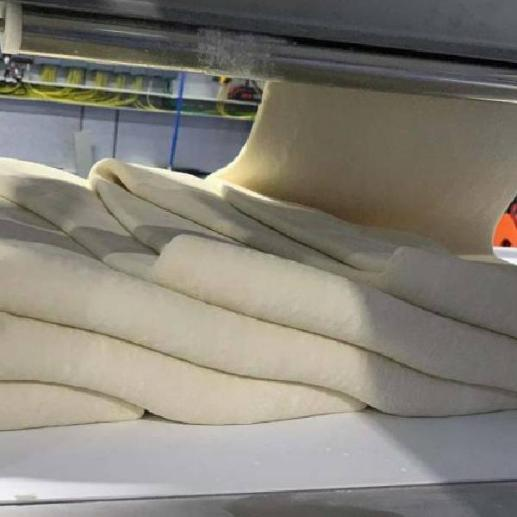

Automatic pastry sheet lamination line is used for producing dough sheet for puff pastry, Danish pastry, croissants, palmier, ect. The dough sheet can be made into round or rectangular, or square shape. Other special shapes can be customized by changing the cutting mold.

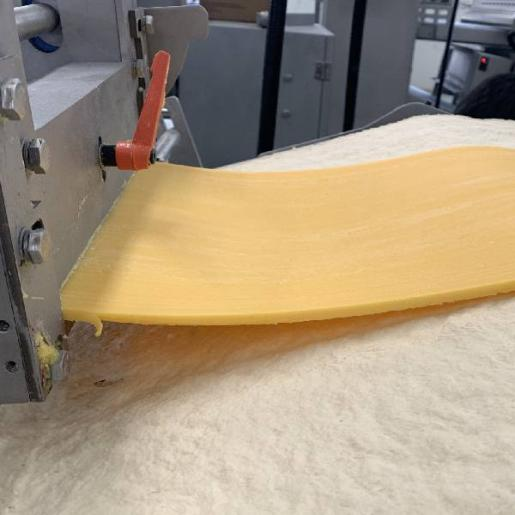

The ratio of butter/ margarine and the dough can be adjusted as demand;

This line is with automatic layer control system and compared with manual dough sheeter, it can save work labor cost, improve the production capacity and get much more stable quality of final product.

Based on different capacity demand, ZLINE has the pastry sheet production line in output dough width of : 600mm , 800mm, 1000mm, 1200mm, 1300mm, ect.

Also, this line can be equippmend with a baking paper feeding machine to produce the pastry sheet warpped with baking paper or film. Then, connected with tunnel freezer and packing system to realize the pastry roll with paper/film full automatically and in a mass production volume.

Industrial pastry sheet laminating line

• Technical parameters

Line model	ZLKSD-600
Line layout method	U-shape
Dimension (LWH)	L25.0mW8.5mH2.4m
Belt width	650mm
Dough width	600mm
Dough thickness	3mm-30mm
Energy consumption	27KW/380V,50HZ, 3PH ( supplied as demand)
Total weight	18000 KG
The number of butter layers	8*8=64
Butter/margarine : dough	1:2 - 1:10

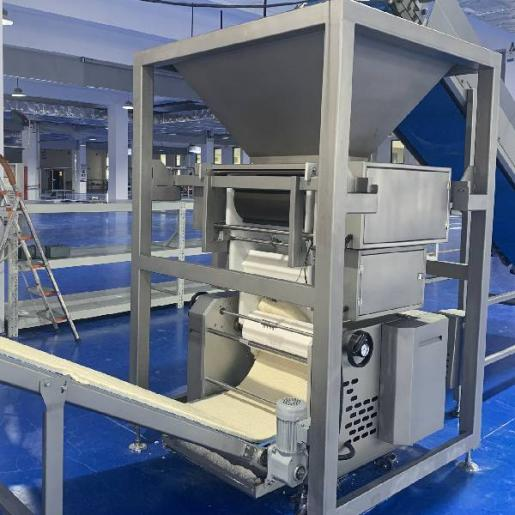

Height of dough hopper	2100mm
Production capacity	≤ 1500kg/h

We will send our proffessional after-sales team to install and commissioning the line for customer after the line is arrived at your factory right away. Also, they will train the operator how to run our line and adjust the related parameters for new product increased to be produced on the line.

This pastry sheet production line is with the function of remote control. The customer only needs to supply the internet for our elcetrical cabinet then we can remotely control and fix the problems during production, which can reduce the down time and save the cost.

Spare parts will be sent immediately by air express once it needs.

Our teams always online to be ready for video meeting to talk the problems and find the solution in time.
